Outdoor Kindergarten Slide Playground Equipment

Description

114110-155

700*330*450cm

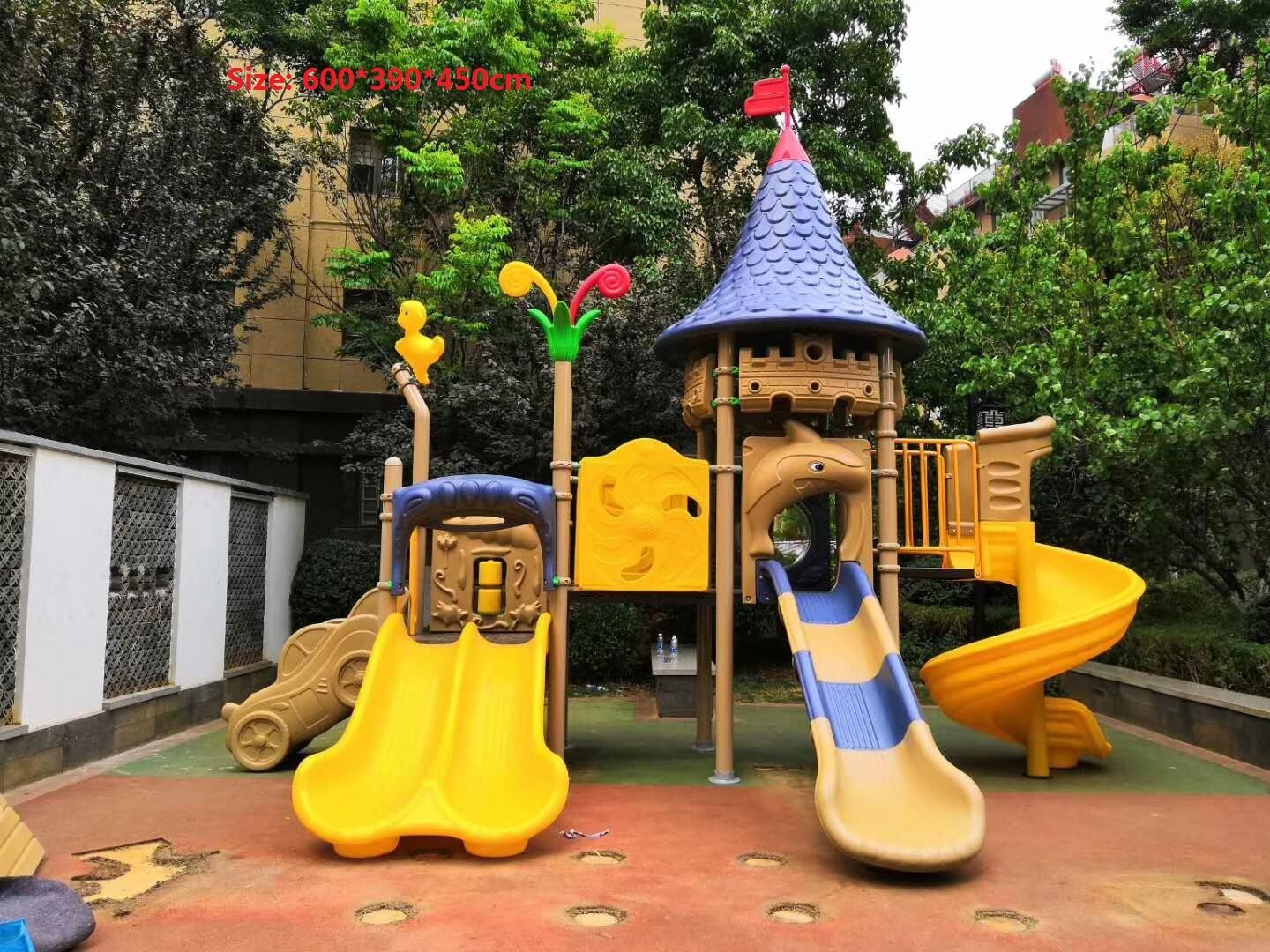

Kindergarten Outdoor Slide Play Equipment

Outdoor Playground Product Process:

1. Pole

114mm/89mm/76mm diameter hot-dip galvanized pipe with a wall thickness of 2mm/2.5mm. High temperature curing (plastic powder adopts Akzo Nobel outdoor environmental protection polyester powder from the Netherlands), smooth surface, strong anti-ultraviolet ability, bright color, not easy to fall off, corrosion resistance. The paint oven adopts a computer-controlled electrostatic powder assembly line spraying device imported from Germany, which can ensure that the outdoor will not fade for eight to ten years.

2. Platform:

It is formed by cold-rolled steel plate with a thickness of 2mm, and the punching diameter is 6mm (in line with the European Union EN1176 standard). The welding is argon arc welding and CO2 gas shielded welding (in accordance with the requirements of GB / T8810-1995). The platform has a strong bearing capacity ( In line with EU EN1176 standard). After the overall processing and shaping, after professional technicians degreasing, phosphating, and sanding, the surface is sprayed with DuPont outdoor environmental protection polyester powder, which is cured at high temperature, the surface is smooth, the ultraviolet light resistance is strong, the color is bright, it is not easy to fall off, and it is corrosion-resistant; The spraying equipment adopts a computer-controlled electrostatic powder spraying device imported from South Korea. The powder recycling adopts a small cyclone and imported filter, which is highly efficient and pollution-free.

3. Plastic parts:

It adopts imported South Korean LLDPE special material for rotomolding and is rotomolded to meet the requirements of GB / T 4454-1996. The thickness of the plastic wall is more than 6mm. Strong ability, safety and environmental protection, good weather resistance and high strength.

4. Iron parts:

Use 28mm/32mm/38mm/48mm/60mm in diameter pipes, and a wall thickness of 2.0mm steel pipe (pipe quality meets BS1387-1985 standard requirements, technical standards meet BS1387-1985 requirements), welding using argon arc welding and CO2 gas Protective welding (according to the requirements of GB / T8810-1995), after the overall processing and shaping, after professional personnel degreasing, phosphating, and sand-blasting treatment, the surface is then cured by high-temperature electrostatic powder spraying line, Outdoor environmental protection polyester powder), smooth surface, strong UV resistance, bright colors, not easy to fall off, corrosion resistance.
